Wear Resistant Rubber Liner
Rubber as a lining material has proved to be very useful in material handling applications due to its inherent dampening properties. The dampening effect of a rubber liner depends on the angle of impact. Sakar wear resistant rubber liners are manufactured from special rubber compound by high pressure molding which imparts abrasion, impact and corrosion resistant properties to these liners. The wear pattern of these elements can be predicted fairly accurately which enables proper maintenance planning and hence reduces the overall costs. we can also bend, roll or shape the liners to suit each individual application.
| Features |
Benefits |
| Enhanced elasticity & dampening property absorbs impact loads providing cushioning effect |
Increase equipment life and reduce degradation of materials |
| High resilience reduces vibrations and by dampening the impact forces. |
Prevents damage to mother plate |
| Fire resistance (FRAS) from red hot Bulk Materials conforming protection to the structure |
Safe operation & prevents conveyor damage. |
| Low hardness compared to steel, reduces mineral degradation & tonnage loss in sized mineral handling |
Lower inventories can be maintained due to predictable wear pattern |
Application
Selection of the variants is determined on the duty condition and installation suitability. These liners find application in chutes, bunkers, hoppers in areas where impact and abrasion wear resistance is required.
| PRODUCT VARIANTS |
Product Construction |
| AGGRESSION (S) |

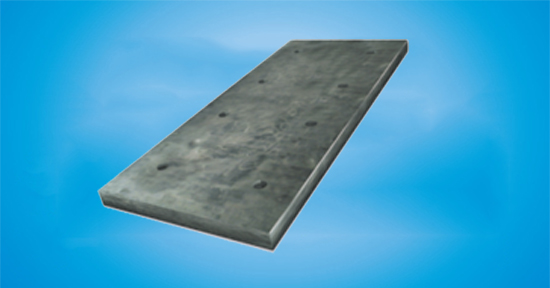

Flat rubber plate for non standard area application. |
| AGGRESSION (P) |

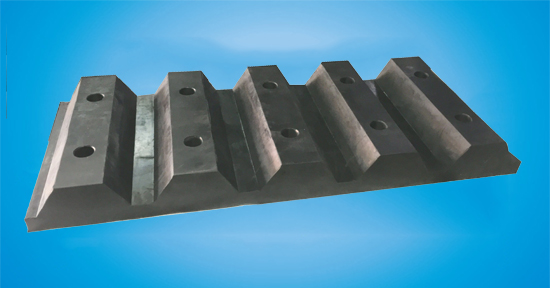

Profile rubber plate with reinforced holes, due to the corrugated surface, an optimal impact angle (~900) can be achieved,
extending the wear life of the lining material. |
| AGGRESSION(R) |

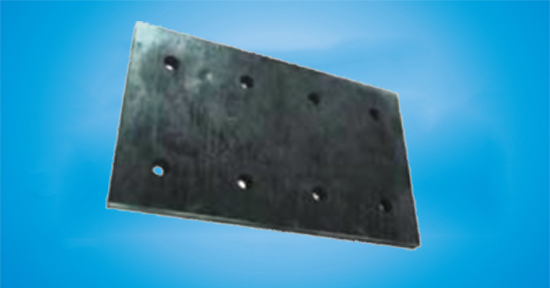

Rubber plates with reinforced fastening hole |
| AGGRESSION (T) |
Steel backed rubber plate with holes offers stability and allows for safe installation using through bolts or stud welding. |
